Charger1+DC

Sale price$429.00Regular price $499.00
Hurry, only 1 item left in stock!

Product details

6x Faster Charging Speed

The Charger 1 delivers up to 560W of power— 6X faster than a traditional car charger. Now you can fully charge a 1kWh power station in just 2.5 hours, making it a game-changer for your on-the-go charging experience.

Why Choose Charger 1?


High Security
High Security
Auto On/Off
Super Temperature Control
With adjustable voltage, it adapts to all BLUETTI power stations and 95% other models on the market.

Multi-Layer Protection in Every Charge


Protect Your Vehicle Battery
Protect The Charger 1
Protect Your Power Station
Prevents your car battery from draining, so you can start your vehicle anytime.

Monitor and Control While Driving

With the BLUETTI app, you can easily check the charging status, adjust the voltage directly from your phone, and ensure everything is running smoothly.

Easy Steps to Install


Easy Install in 4 Steps
Check the Compatibility Table and Installing Your BLUETTI Charger 1 With Ease.

Step 1 : Prepare your installation
1. Check all components in place, including a 6AWG DC input cable. 2. Prepare the tools. 3. Ready your power station and solar charging cable.

Step 2: Connect to Charger 1
1. Switch off the circuit breaker on the 6AWG DC input cable. 2. Connect the 6AWG input cable and the MC4 output cable to the Charger 1. 3. Connect the output cable to your power station via a solar charging cable.

Step 3 : Connect to Car battery
1. Run the input cable through your car to the car battery. 2. Attach the cable to the car battery terminals, red to the positive, black to the negative.

Step 4 : Start Charging
1. Switch on the circuit breaker. Set the proper voltage before turn on the Charger 1 on App. 2. Find a place to secure the Charger 1 properly.

Tech Specs

BLUETTI Charger 1

OUTPUT

  • Default Voltage

    27V

  • Voltage Range (with 12V battery)

    15.0V to 56.0V (adjustable via app)

  • Voltage Range (with 24V battery)

    27.0V to 56.0V (adjustable via app)

  • Current

    10A

  • Power

    560W

INPUT

  • Input Voltage

    12V -14V / 22.5V - 28V

  • Input Amperage

    50A - 12V / 25A - 24V

GENERAL

  • Product Function

    Increase output voltage (To charge power station)

  • Compatibility

    All BLUETTI power stations & 95% other models on the market.

  • Protections

    Short circuit/anti-reverse/under-voltage/over-temperature

  • Cooling

    Fan cooling

  • Surge Protection

    60A Circuit Breaker (Optional)

  • Operating Temperature

    -20°C to 60°C / -4°F to 140°F

  • Protection Grade

    IP20

  • Noise

    50dB Max.

  • Weight

    Approx. 1.2kg / 2.645lbs

  • Dimensions (L x W x D)

    145mm × 110mm × 60mm / 5.7in × 4.33in × 2.36in

  • Warranty

    2 Years

  • App Control

    Bluetooth


IN THE BOX

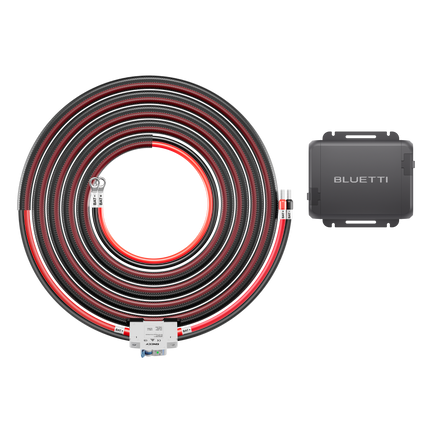

  • Charger 1 DC-DC Charger
    x 1
  • DC Input Cable
    x 1
  • MC4 Output Cable
    x 1
  • Hex Socket Screw
    x 4
  • Self-tapping Screw
    x 6
  • Hex Socket Wrench
    x 1
  • User Manual
    x 1
