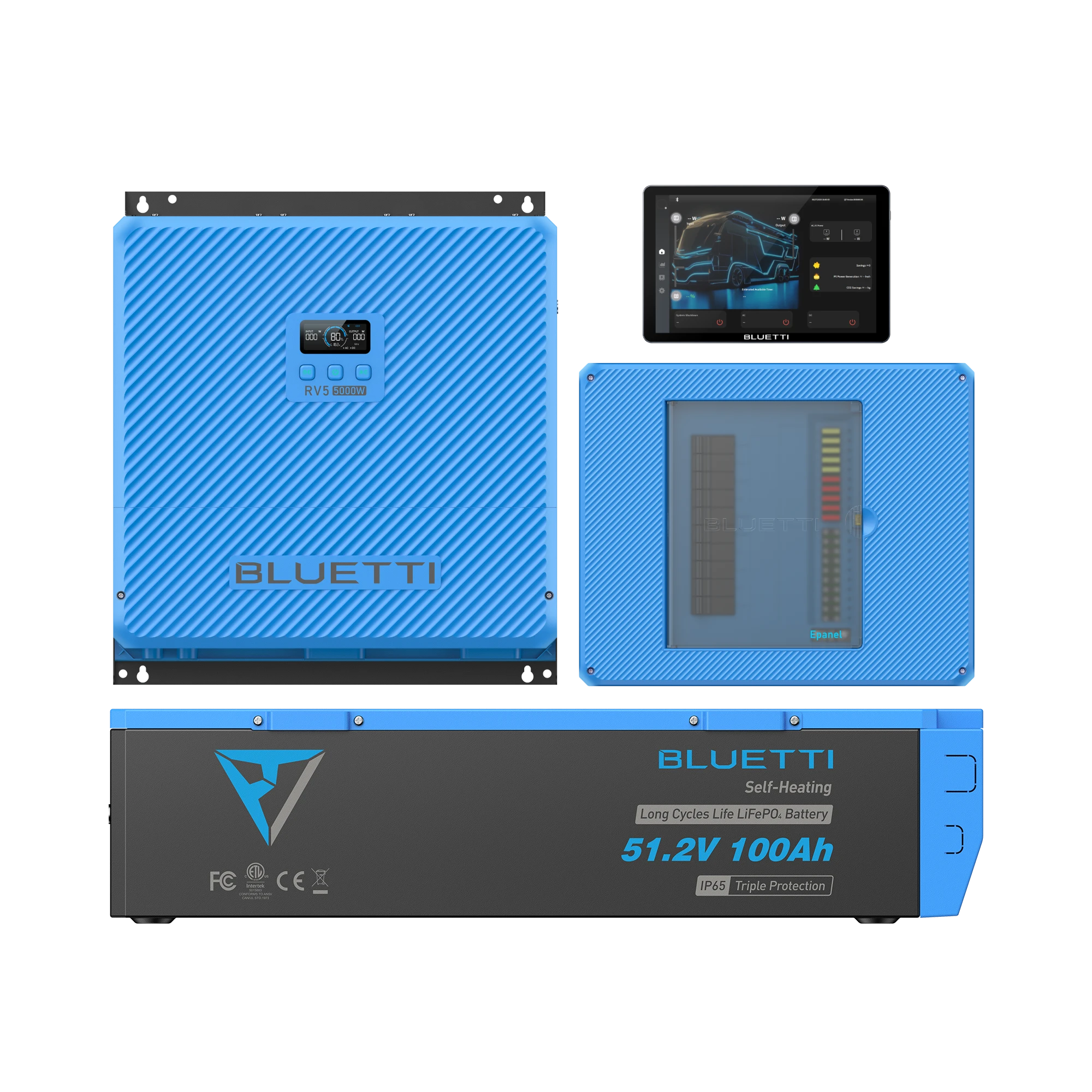

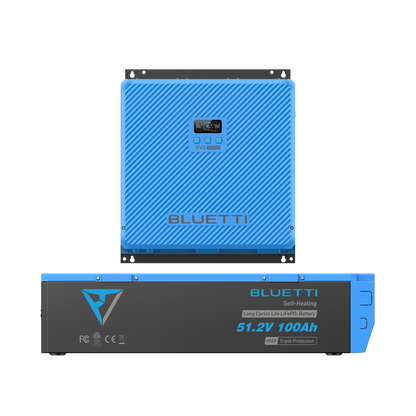

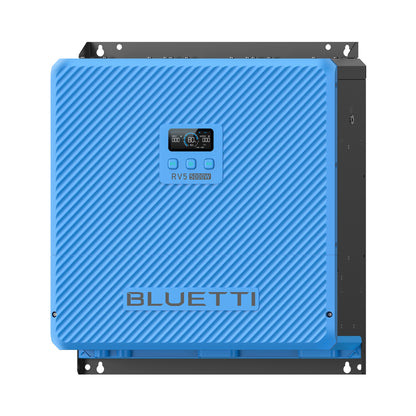

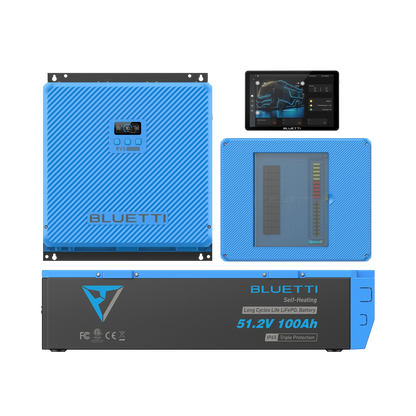

BLUETTI RV5 + B4810 Battery + Epanel & Epad
RV5+B4810+EPANEL+EPAD

BLUETTI RV5 + B4810 Battery + Epanel & Epad
Product details
All the Power, Half the Hassle

Stop Rationing Power. Goodbye Power Anxiety.
With 5,000 W of continuous power, the RV5 lets you run your A/C, microwave, coffee maker, and more all at once, just like at home. Powered by B4810 LiFePO₄ batteries, it gives you over 6,000 charge cycles for years of reliable energy. Even in the cold, the self-heating feature keeps things running smoothly. At only 7 W of standby power, each charge goes further. The RV5 lets you live fully, with peace of mind, and enjoy every moment of your journey without worrying about power.
Fast, Flexible Charging for Non-Stop Adventure.
Adventure doesn't stop for charging, and now you don't have to either. The RV5 keeps you powered with fast, versatile charging options. Recharge quickly with up to 5,000 W of shore power at the campsite, capture up to 1,800 W from the sun while boondocking, or harness up to 1,200 W from your vehicle's alternator while on the road. Focus on the journey, not the charge.
The 1-Day RV Upgrade. No Electrical Degree Required.
Transform your RV's power in just one weekend. Our plug-and-play system eliminates compatibility hassles and the guesswork of traditional builds. Simplicity doesn't mean you're on your own. From planning to final connections, our team of experts is here to guide you every step of the way, making your DIY upgrade a breeze.

True Tranquility, Powered by Safety.
Escape the noise of traditional generators and embrace the peace of nature. True tranquility isn't just about silence; it's about knowing you're safe. With advanced LiFePO4 battery technology and UL certification, the RV5 ensures your family, pets, and home on wheels are always protected. Enjoy worry-free, uninterrupted power, backed by the highest standards of safety and reliability.

Smart Home Tech for the Open Road.
Manage your entire electrical system from one intuitive HD touchscreen. The Epad gives you a complete overview of your power consumption, battery status, and charging inputs in real-time. With the BLUETTI app, this power is also in your pocket, wherever you are.


INPUT
-
Input Voltage
230 V
-
Shore Power/Generator Charging
5,000 W Max. (limited by battery terminal current)
AC Output
-
AC Rated Output Voltage
230 V
-
AC Rated Output Power
5,000 W
Solar Charging (PV1/PV2)
-
Solar Charging (PV1/PV2) Max. Input Power
1,800 W
-
Solar Charging (PV1/PV2) Input Voltage
12 V to 50 V
-
Solar Charging (PV1/PV2) Max. Input Current
50 A
Vehicle Charging (PV2)
-
Vehicle Charging (PV2) Max. Input Power
600 W (12 V) / 1,200 W (24 V)
-
Vehicle Charging (PV2) Input Voltage
12 V to 14.4 V (12 V) 24 V to 28.8 V (24 V)
-
Vehicle Charging (PV2) Max. Input Current
50 A
DC Output
-
DC Rated Output Voltage
12 V/24 V
-
DC Rated Output Current
100 A (12 V) 60 A (24 V)
-
DC Rated Output Power
1,360 W (12 V) 1,620 W (24 V)
-
Total DC Load Power
6,000 W Max. (varies by battery type and quantity)
GENERAL
-
Weight
Approx. 30.86 lbs/14 kg
-
Dimensions (L x W x D)
17.72 × 19.69 × 6.30 in/450 × 500 × 159.9 mm
-
Operating Temperature
−4°F to 131°F/−20°C to 55°C
-
Storage Temperature
−4°F to 104°F/−20°C to 70°C
-
Operating Humidity
95% Max.
-
Certification
UL458
-
Warranty
5 years
-
Uninterruptible Power Supply (UPS)
Switchover time ≤20ms
Tech Specs B4810 Battery
BATTERY INFO
-
Capacity
5,120 Wh (51.2 V, 100 Ah)
-
Type
LiFePO₄ (Lithium Iron Phosphate)
-
Life Cycles
6,000 Cycles @ 70% Capacity
CHARGING & DISCHARGING
-
Charge Current
50 A (Recommended) 100A Max.
-
Discharge Current
100A Max.
-
Peak Discharge Current
200A @ 30s
-
Cell Temperature Protection
Charging: <-1°C or >61°C (<30°F or >142°F) Discharging: <-21°C or >61°C (<-5.8°F or >142°F)
GENERAL
-
Net Weight
Approx. 46 kg (101.4 lbs)
-
Dimensions (L × W × H)
608 × 380 × 145mm (23.94 × 14.96 × 5.71in)
-
IP Rating
IP65
-
Max. Expansion (Parallel & Series)
122.88 kWh (24P), 51.2 V, 2,400 Ah
-
Charging Temperature
-20°C to 55°C (-4°F to 131°F)
-
Discharging Temperature
-20°C to 55°C (-4°F to 131°F)
-
Storage Temperature
Up to 1 Month: -20°C to 40°C (-4°F to 104°F) Up to 6 Months: -20°C to 25°C (-4°F to 77°F)
-
Certification
MSDS, UN38.3, FCC, CE, RoHS, UL
-
Warranty
5 Years
