Description
Capture more energy with a dual-sided design
With a 160W primary side, and a 125W side on the back for ambient light, you can capture up to 28% more solar energy and charge your portable power station even faster.

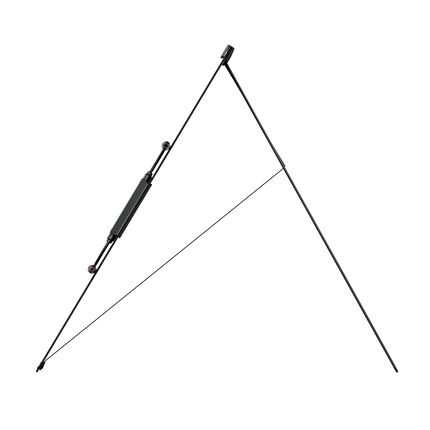

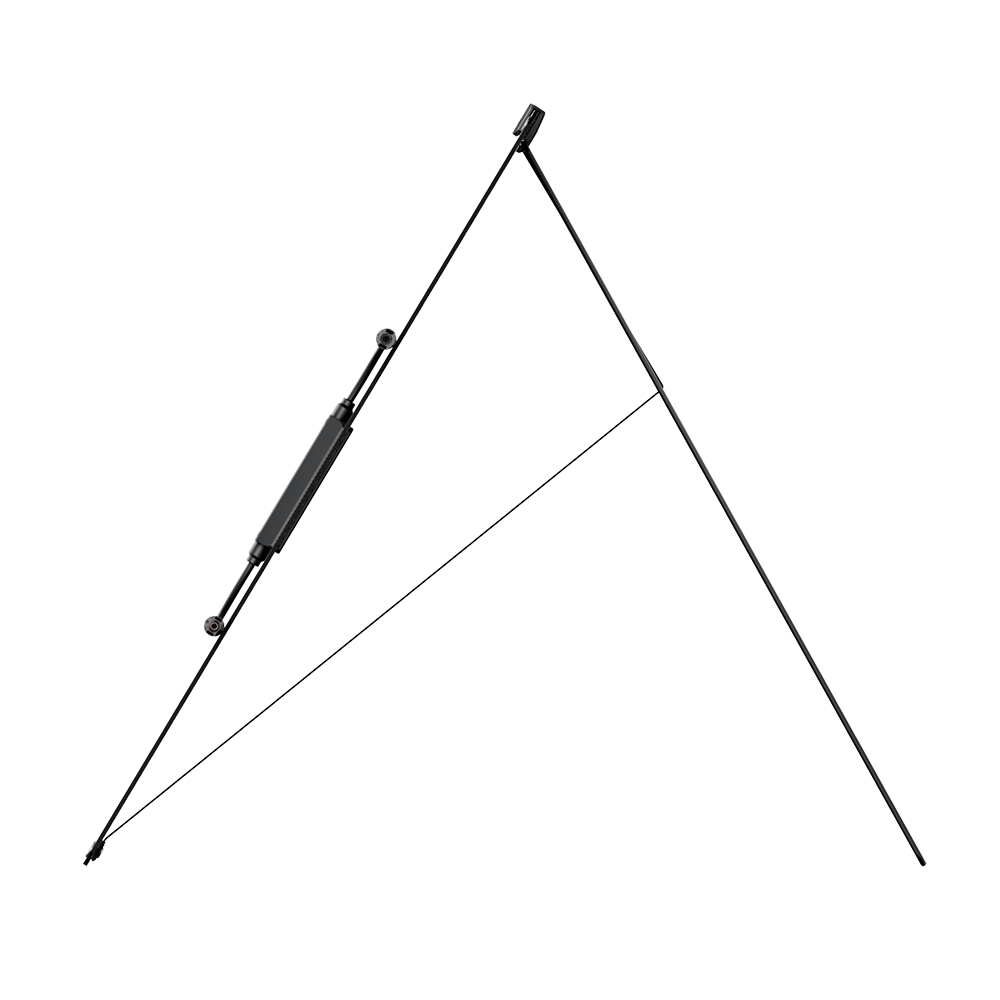

Capture more solar with an adjustable angle
With a newly integrated solar angle guide and stand, adjust the angle of the panel by 30 degrees in seconds to get the most sunshine at all times.
Integrated solar angle guide
Keeps sunlight at a 90° angle on the surface of your solar panel to capture the most energy possible.
Durable and waterproof
Designed to withstand high temperatures while still ensuring high levels of solar generation.
Never too hot
Designed to withstand high temperatures while still ensuring high levels of solar generation.
Frequently Asked Questions
How do I get the most solar power?
Increase the efficiency of your solar panel by facing it directly at the sun without any obstructions. Remember to be careful when handling your solar panel because damaged cells provide less power.
Does it charge if it's inside?
Yes, if the only thing between it and the sun is transparent, but it won’t charge as well compared to being outside. You can compare the difference by looking at the input section of your power station’s LCD screen.
SPECIFICATIONS:
Unfolded Dimensions: 61.5 x 163 x 2.5 cm
Folded Dimensions: 61.5 x 58.6 x 3.2 cm
Weight: 5.1 kg (Solar Panel)
Warranty: 24 Months
Rated Power: 160W(±5W) Front, 125W Rear
Efficiency: 25%
Connector Type: MC4
Open Circuit Voltage: 21.3V (Vmp 18.6V)
Short Circuit Current: 9.1A (Imp 8.6A) Front Side/ 7.1A (Imp 6.7A) Rear Side
Cell Type: TOPCon monocrystalline silicon
Operating & Storage Temperature: -20°C to 85°C
IN THE BOX
NextGen 160W Bifacial Solar Panel
MC4 to XT60i Charging Cable
Protective Bag
Quick Start Guide
Safety Instructions & Warranty Card
